氣缸系列

發 布：2020-11-18 瀏覽：4104

0519-86162721

立即訂購

在線咨詢

詳情 & 參數

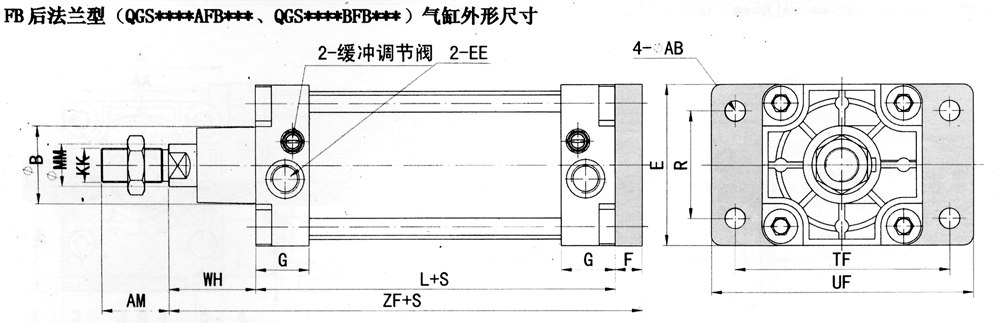

QGS系列普通雙作用汽缸外形尺寸：

缸徑	AB	AM	B	E	EE	F	G	KK	L	MM	R	TF	UF	WH	ZF
32	7	22	30	47	G1/8	10	26	M10×1.25	94	12	32	64	80	26	130s
40	9	24	35	53	G1/4	10	28	M12×1.25	105	16	36	72	90	30	145
50	9	32	40	62	G1/4	12	28	M16×1.5	106	20	45	90	110	37	154
63	9	32	40	75	G3/8	12	32	M16×1.5	121	20	50	100	125	37	170
80	12	40	45	94	G3/8	16	32	M20×1.5	128	25	63	126	150	46	189
100	14	40	55	112	G1/2	16	37	M20×1.5	138	25	75	150	185	51	205
125	16	54	60	140	G1/2	20	42	M27×2	160	32	90	180	220	65	249
160	18	72	80	180	G3/4	20	45	M36×2	180	45	115	230	280	80	274
200	22	72	80	220	G3/4	25	50	M36×2	180	45	135	270	320	95	299
250	26	84	95	280	G1	25	50	M42×2	190	50	165	330	390	105	320
320	28	96	105	350	G1	30	55	M48×2	210	63	200	400	470	120	360

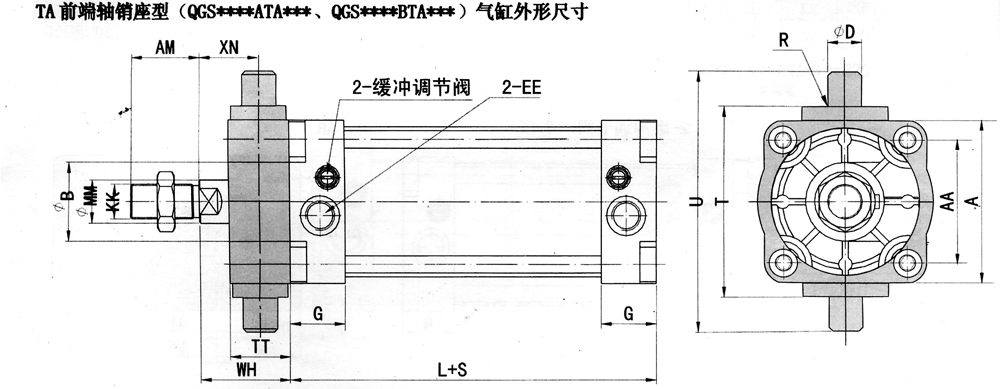

缸徑	A	AA	AM	B	D	EE	G	KK	L	MM	R	T	TT	U	WH	XN
32	47	32.5	22	30	12	G1/8	26	M10×1.25	94	12	1	50	20	74	26	16
40	53	38	24	35	16	G1/4	28	M12×1.25	105	16	1.5	63	24	95	30	18
50	62	46.5	32	40	16	G1/4	28	M16×1.5	106	20	1.6	75	28	107	37	23
63	75	56.5	32	40	20	G3/8	32	M16×1.5	121	20	1.6	90	28	130	37	23
80	94	72	40	45	20	G3/8	32	M20×1.5	128	25	1.6	110	28	150	46	31
100	112	89	40	55	25	G1/2	37	M20×1.5	138	25	2	132	38	182	51	32
125	140	110	54	60	25	G1/2	42	M27×2	160	32	2	160	50	210	65	36
160	180	140	72	80	32	G3/4	45	M36×2	180	45	2.5	200	50	264	80	55
200	220	175	72	80	32	G3/4	50	M36×2	180	45	2.5	250	50	314	95	65
250	280	220	84	95	40	G1	50	M42×2	190	50	3.2	320	60	400	105	75
320	350	270	96	105	50	G1	55	M48×2	210	63	3.2	400	70	500	120	85

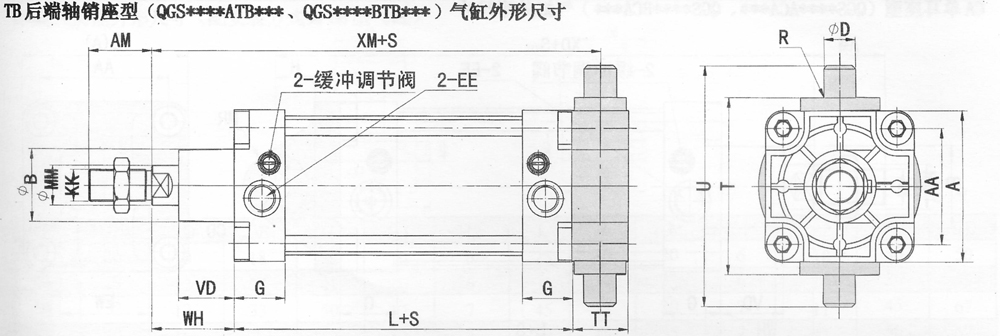

缸徑	A	AA	AM	B	D	EE	G	KK	L	MM	R	T	U	VD	WH	XM
32	47	32.5	22	30	12	G1/8	26	M10×1.25	94	12	1	50	74	16	26	130
40	53	38	24	35	16	G1/4	28	M12×1.25	105	16	1.5	63	95	20	30	147
50	62	46.5	32	40	16	G1/4	28	M16×1.5	106	20	1.6	75	107	23	37	156
63	75	56.5	32	40	20	G1/8	32	M16×1.5	121	20	1.6	90	130	23	37	172
80	94	72	40	45	20	G1/8	32	M20×1.5	128	25	1.6	110	150	25	46	187
100	112	89	40	55	25	G1/2	37	M20×1.5	138	25	2	132	182	25	51	208
125	140	110	54	60	25	G1/2	42	M27×2	160	32	2	160	210	42	65	254
160	180	140	72	80	32	G1/4	45	M36×2	180	45	2.5	200	264	55	80	279
200	220	175	72	80	32	G1/4	50	M36×2	180	45	2.5	250	314	55	95	299
250	280	220	84	95	40	G1	50	M42×2	190	50	3.2	320	400	75	105	325
320	350	270	96	105	50	G1	55	M48×2	210	63	3.2	400	500	85	120	365

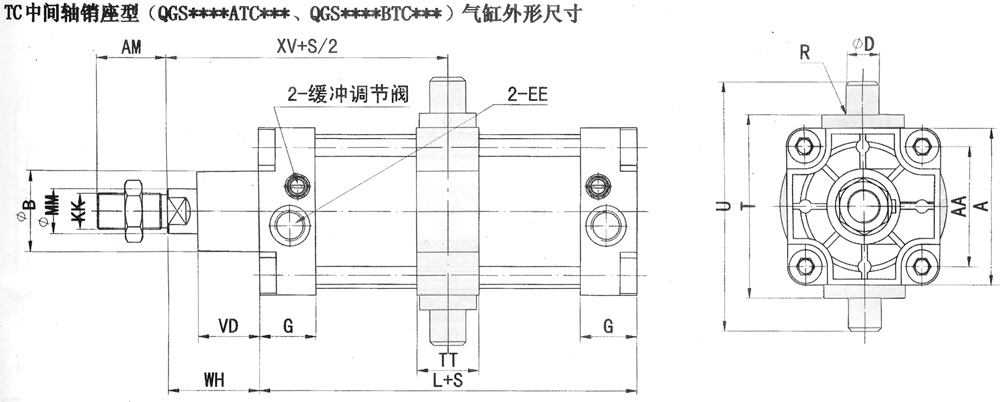

缸徑	A	AA	AM	B	D	EE	G	KK	L	MM	R	T	TT	U	VD	WH	XM
32	47	32.5	22	30	12	G1/8	26	M10×1.25	94	12	1	50	20	74	16	26	71
40	53	38	24	35	16	G1/4	28	M12×1.25	105	16	1.5	63	24	95	20	30	82.5
50	62	46.5	32	40	16	G1/4	28	M16×1.5	106	20	1.6	75	28	107	23	37	89.5
63	75	56.5	32	40	20	G1/8	32	M16×1.5	121	20	1.6	90	28	130	23	37	97.5
80	94	72	40	45	20	G1/8	32	M20×1.5	128	25	1.6	110	28	150	25	46	109
100	112	89	40	55	25	G1/2	37	M20×1.5	138	25	2	132	28	182	25	51	120
125	140	110	54	60	25	G1/2	42	M27×2	160	32	2	160	38	210	42	65	145
160	180	140	72	80	32	G1/4	45	M36×2	180	45	2.5	200	50	264	55	80	167
200	220	175	72	80	32	G1/4	50	M36×2	180	45	2.5	250	50	314	55	95	182
250	280	220	84	95	40	G1	50	M42×2	190	50	3.2	320	60	400	75	105	200
320	350	270	96	105	50	G1	55	M48×2	210	63	3.2	400	70	500	85	120	225

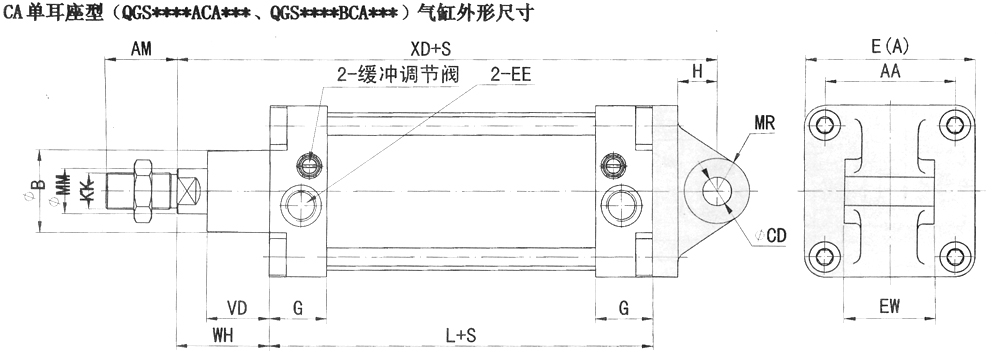

缸徑	AA	AM	B	CD	E(A)	EE	EW	G	H	KK	L	MM	MR	VD	WH	XD
32	32.5	22	30	10	47	G1/8	26	26	13	M10×1.25	94	12	10	16	26	142
40	38	24	35	12	53	G1/4	28	28	16	M12×1.25	105	16	13	20	30	160
50	46.5	32	40	12	62	G1/4	32	28	17	M16×1.5	106	20	16	23	37	169
63	56.5	32	40	16	75	G1/8	40	32	22	M16×1.5	121	20	18	23	37	190
80	72	40	45	16	94	G1/8	50	32	22	M20×1.5	128	25	18	25	46	209
100	89	40	55	20	112	G1/2	60	37	27	M20×1.5	138	25	23	25	51	230
125	110	54	60	25	140	G1/2	70	42	31	M27×2	160	32	30	42	65	276
160	140	72	80	30	180	G1/4	90	45	35.5	M36×2	180	45	32	55	80	309
200	175	72	80	30	220	G1/4	90	50	36	M36×2	180	45	35	55	95	334
250	220	84	95	40	280	G1	110	50	45	M42×2	190	50	45	75	105	365
320	270	96	105	50	350	G1	120	55	50	M48×2	210	63	54	85	120	410

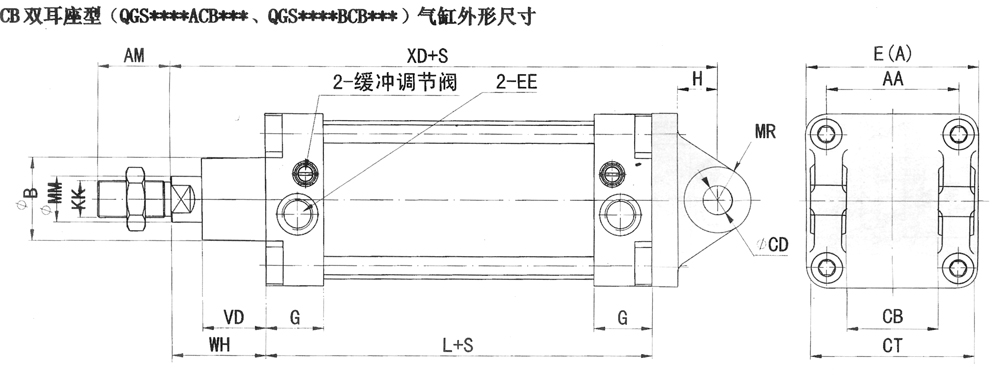

缸徑	AA	AM	B	CD	CT	E(A)	EE	EW	G	H	KK	L	MM	MR	VD	WH	XD
32	32.5	22	30	10	45	47	G1/8	26	26	13	M10×1.25	94	12	10	16	26	142
40	38	24	35	12	52	53	G1/4	28	28	16	M12×1.25	105	16	13	20	30	160
50	46.5	32	40	12	60	62	G1/4	32	28	17	M16×1.5	106	20	16	23	37	169
63	56.5	32	40	16	70	75	G1/8	40	32	22	M16×1.5	121	20	18	23	37	190
80	72	40	45	16	90	94	G1/8	50	32	22	M20×1.5	128	25	18	25	46	209
100	89	40	55	20	110	112	G1/2	60	37	27	M20×1.5	138	25	23	25	51	230
125	110	54	60	25	130	140	G1/2	70	42	31	M27×2	160	32	30	42	65	276
160	140	72	80	30	170	180	G1/4	90	45	35.5	M36×2	180	45	32	55	80	309
200	175	72	80	30	170	220	G1/4	90	50	36	M36×2	180	45	35	55	95	334
250	220	84	95	40	200	280	G1	110	50	45	M42×2	190	50	45	75	105	365
320	270	96	105	45	220	350	G1	120	55	50	M48×2	210	63	54	85	120	410
